Product Inverter CGH Series

CGH Series

A single-phase hybrid inverter

Greater Flexibility

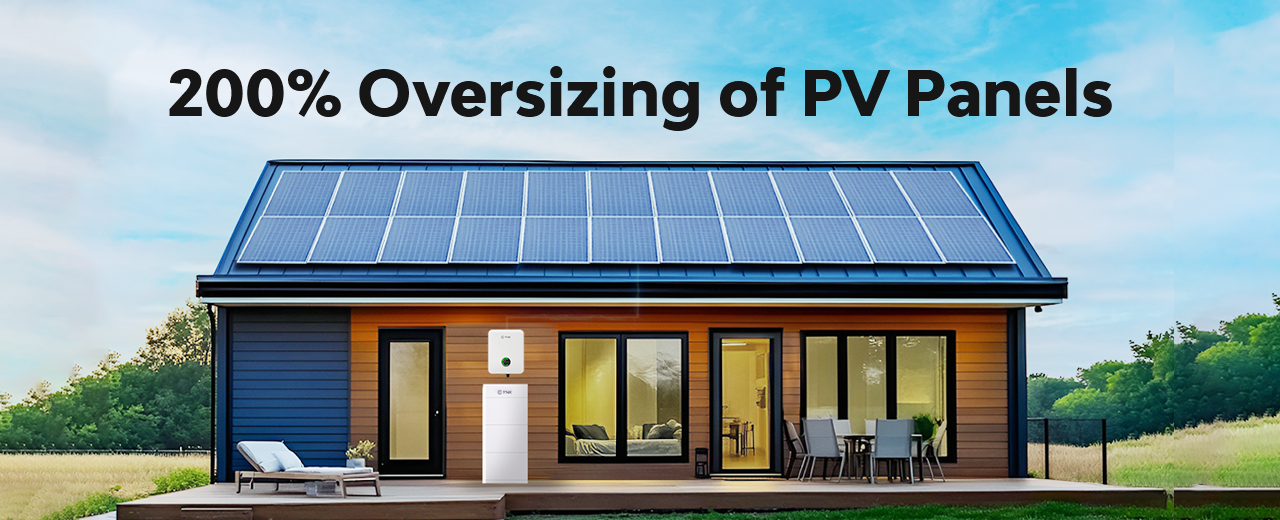

Its ability to accept 200% oversizing of your PV array gives you greater flexibility in system design, allowing you to charge the battery while still supplying power to your home.

Giving You Peace of Mind

Equipped with built-in EPS for blackout protection and integrated DC & AC surge protection devices (SPD) to ensure safe and reliable system operation.

Easy Installation

The CGH series inverter features a plug-and-play installation, a lightweight and compact design, and an efficient commissioning process via the Clenergise app, ensuring a quick and user-friendly setup experience.

Reliable

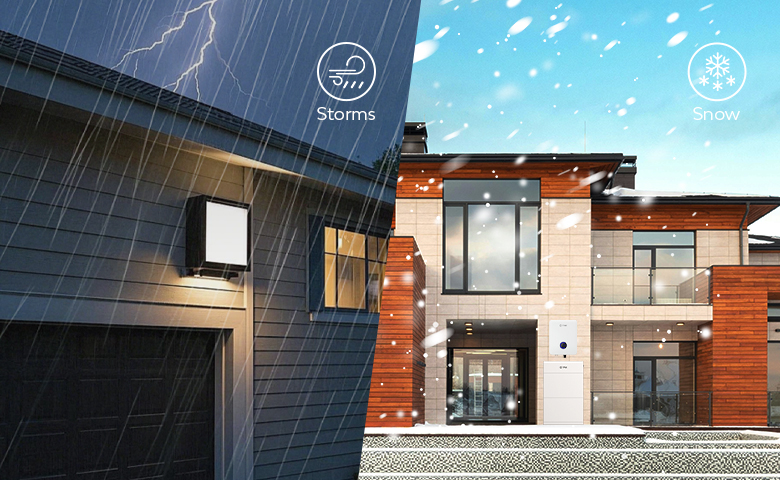

IP66

IP66 rated, making it suitable for both indoor and outdoor installations.

Ultra Intelligent

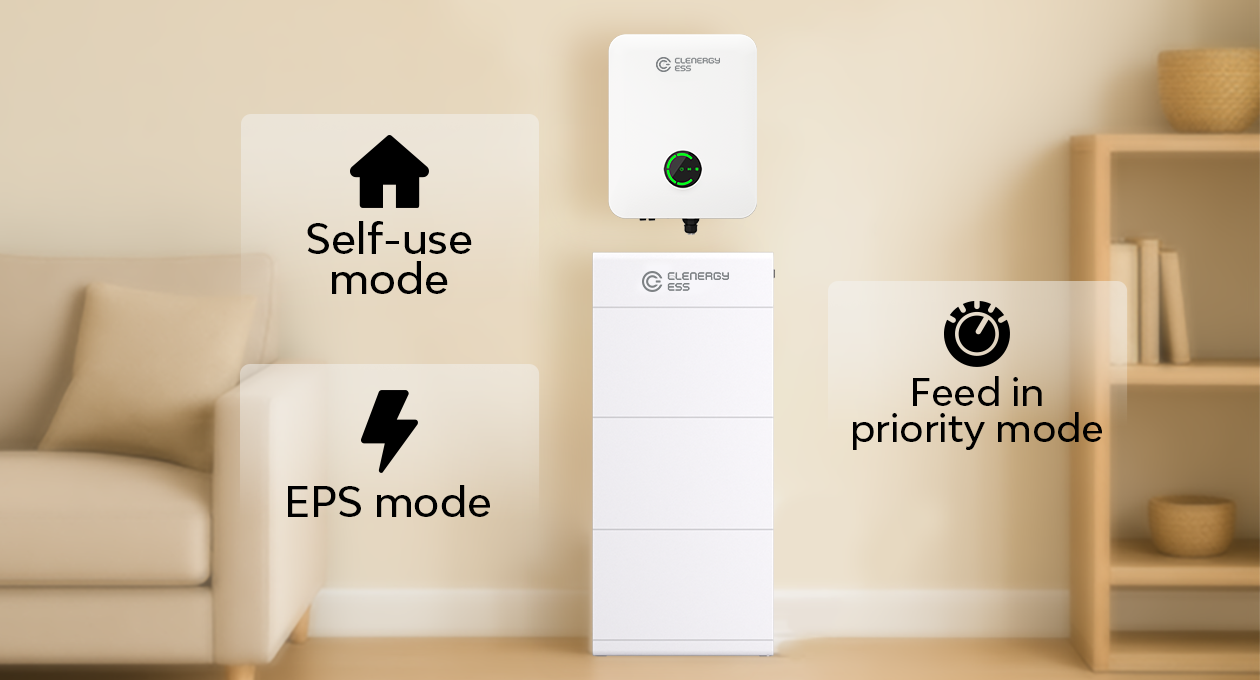

Offer multiple operating modes with an integrated intelligent EMS, making it suitable for both retrofitting and new installations. Real-time data monitoring is enabled through its advanced intelligent monitoring system, ensuring optimised performance and energy management.

Clenergise Cloud

Our dedicated Clenergise Cloud platform streamlines system commissioning with quick setup, real-time monitoring, and intuitive control — all at your fingertips. Installers can fine-tune AC output to meet local regulations, while homeowner can enjoy full control over energy usage, choosing when to self-consume, export to the grid, or charge the battery.

Parameter

Model - CGH S3.6L

PV Input Data

Max. Input Power
7200W
Max. Input Current per MPPT
16A / 16A

Battery Input/Output

Battery Voltage Range
40-60V
Max. Charging Current
80A

AC Output

Max. Apparent Power Output to Grid
3600VA
Backup Rated Apparent Power
3600VA
Rated Grid Voltage
L / N / PE, 220V / 230V / 240V

Basic Info

Dimensions (W*H*D)
520*420*224mm
Weight
25kg
IP Rating
IP66

Model - CGH S4.6L

PV Input Data

Max. Input Power
9200W
Max. Input Current per MPPT
16A / 16A

Battery Input/Output

Battery Voltage Range
40-60V
Max. Charging Current
100A

AC Output

Max. Apparent Power Output to Grid
4600VA
Back Up Rated Apparent Power
4600VA
Rated Grid Voltage
L / N / PE, 220V / 230V / 240V

Basic Info

Dimensions (W*H*D)
520*420*224mm
Weight
25kg
IP Rating
IP66

Model - CGH S5.0L

PV Input Data

Max. Input Power
10000W
Max. Input Current per MPPT
16A / 16A

Battery Input/Output

Battery Voltage Range
40-60V
Max. Charging Current
100A

AC Output

Max. Apparent Power Output to Grid
5000VA
Back Up Rated Apparent Power
5000VA
Rated Grid Voltage
L / N / PE, 220V / 230V / 240V

Basic Info

Dimensions (W*H*D)
520*420*224mm
Weight
25kg
IP Rating
IP66

Model - CGH S6.0L

PV Input Data

Max. Input Power
12000W
Max. Input Current per MPPT
16A / 16A

Battery Input/Output

Battery Voltage Range
40-60V
Max. Charging Current
100A

AC Output

Max. Apparent Power Output to Grid
6000VA
Back Up Rated Apparent Power
6000VA
Rated Grid Voltage
L / N / PE, 220V / 230V / 240V

Basic Info

Dimensions (W*H*D)
520*420*224mm
Weight
25kg
IP Rating
IP66
