Product Inverter TNK PV 5/6kW (AU Only)

TNK PV 5/6kW (AU Only)

Hybrid inverter provides energy security and independence for your home when coupled with the CGS battery.

Greater Flexibility

Its ability to accept 160% oversizing of your PV array gives you greater flexibility in system design, allowing you to charge the battery while still supplying power to your home.

Giving You Peace of Mind

TNK PV hybrid inverter is built to the high standards for which Clenergy is known, giving you peace of mind that your energy needs will be taken care of for years to come. With a 10-year warranty and full local support in Australia, you can be confident in your investment.

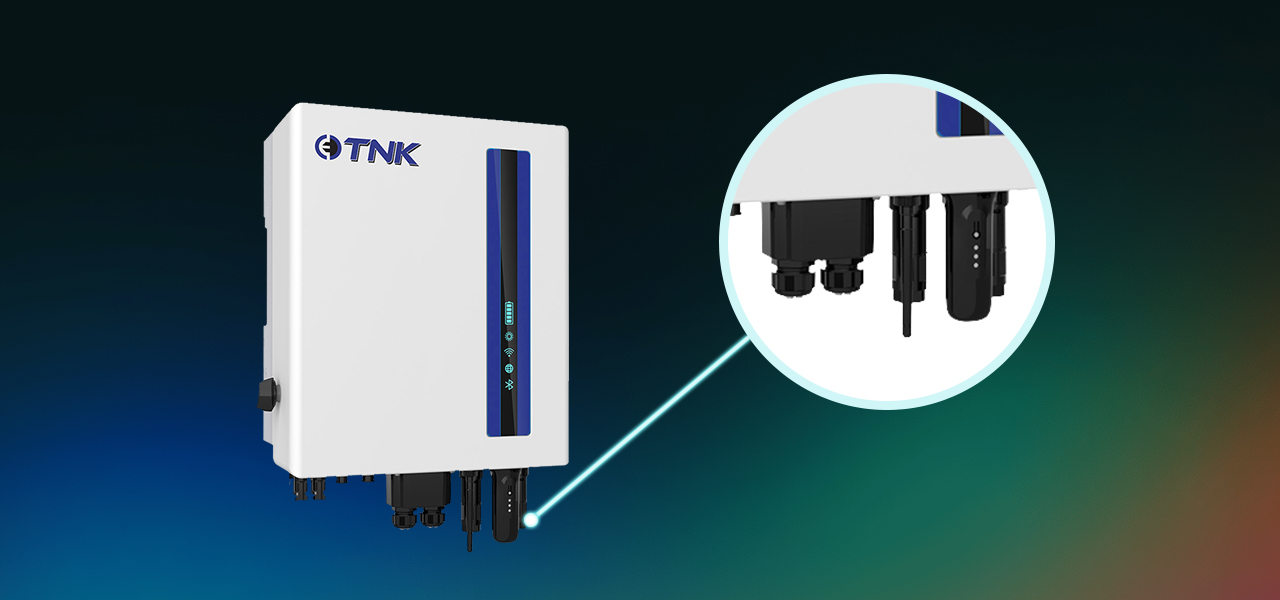

Simplified Installation Process

Equipped with a market-proven mounting system for fast and easy installation.

Reliable

IP66
10 Years

IP66-rated suitable for indoor and outdoor installation / 10-year product warranty / Integrated blackout protection with in-built EPS

User-friendly
Monitoring System

Wi-Fi connectivity included / Live monitoring of system through the APP - Consumption meter included

Clenergise Cloud

Our dedicated Clenergise Cloud platform streamlines system commissioning with quick setup, real-time monitoring, and intuitive control — all at your fingertips. Installers can fine-tune AC output to meet local regulations, while homeowner can enjoy full control over energy usage, choosing when to self-consume, export to the grid, or charge the battery.

Parameter

Model - TNK-5000-PV-E1

PV Input

Max. PV array power
8kW
Max. input current per MPPT
16A

Battery Input/ Output

Battery voltage range
42-58V
Max. charging / discharging current
105A / 105A

AC Output

Max. Apparent Power Output to Grid
5kVA
Back Up Rated Apparent Power
5kVA
Rated Grid Voltage
230V

General Info

Dimensions (W*H*D)
405*480*205mm
Weight
24.2kg
IP Rating
IP66

Model - TNK-6000-PV-E1

PV Input

Max. PV array power
9.6kW
Max. input current per MPPT
16A

Battery Input/ Output

Battery voltage range
42-58V
Max. charging / discharging current
125A / 125A

AC Output

Max. Apparent Power Output to Grid
6kVA
Back Up Rated Apparent Power
6kVA
Rated Grid Voltage
230V

General Info

Dimensions (W*H*D)
405*480*205mm
Weight
24.2kg
IP Rating
IP66

ClenergyESS TNK PV5/6 Inverter Datasheet Australia ClenergyESS TNK PV5/6 Inverter User Manual Australia ClenergyESS TNK PV5/6 Inverter Warranty Australia

Clenergise App Commission Guide
