    Product EV Charger CGE Series

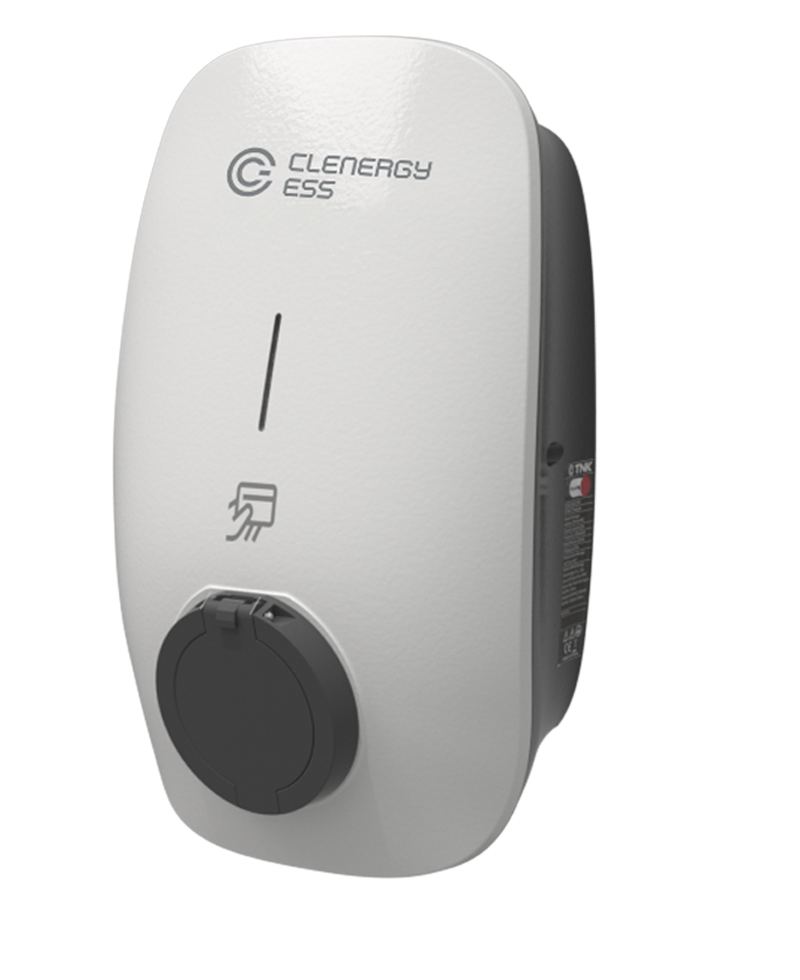

    CGE Series

    Smart Control
    Enables dynamic load management with a smart meter, integrates seamlessly with the TNK ESS, and supports multiple communication options for intelligent energy optimisation.

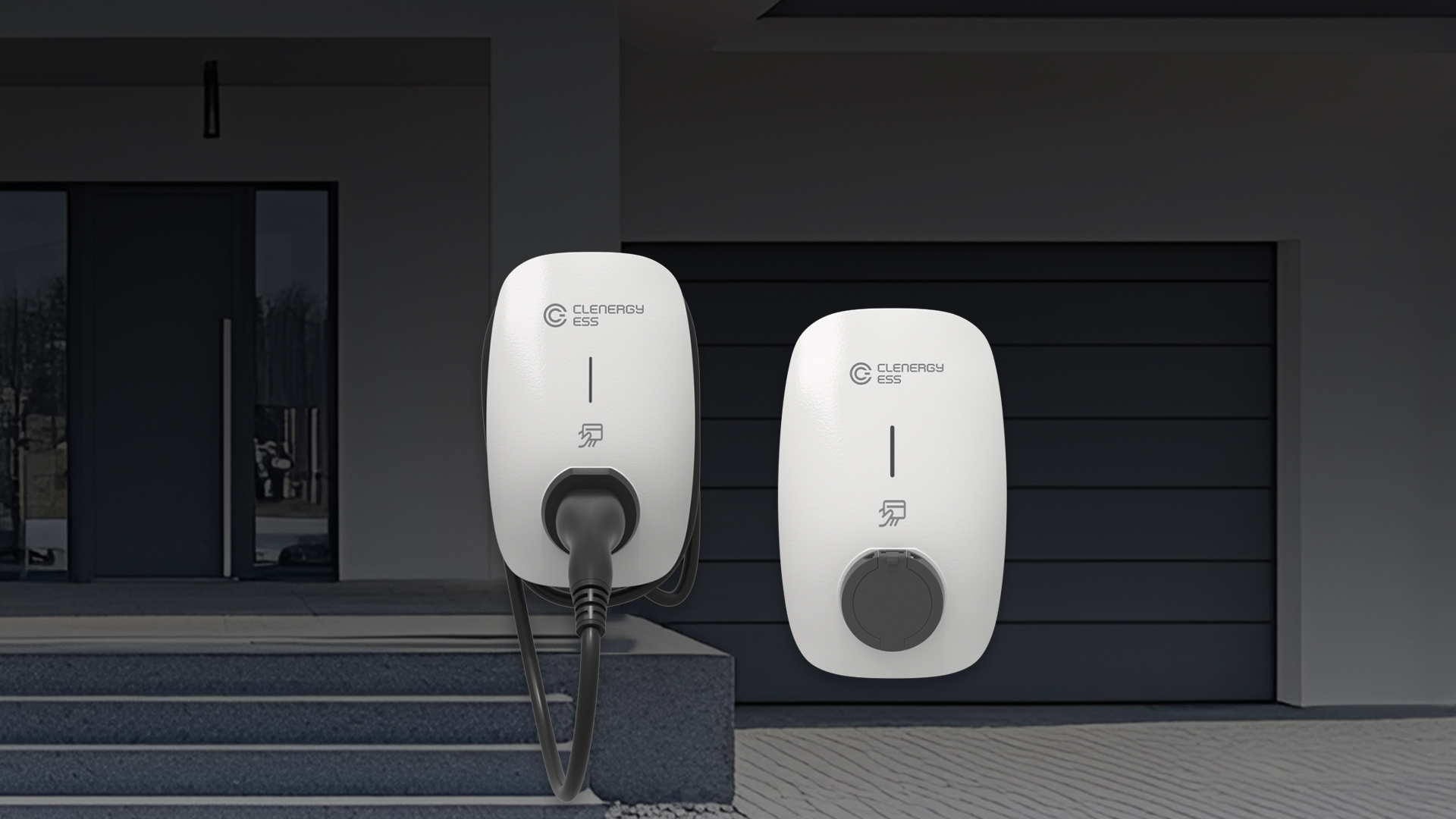

    User Friendly
    Designed for simple installation and maintenance, featuring Type 2 cable or socket options and both wall-mount and pole-mount flexibility.

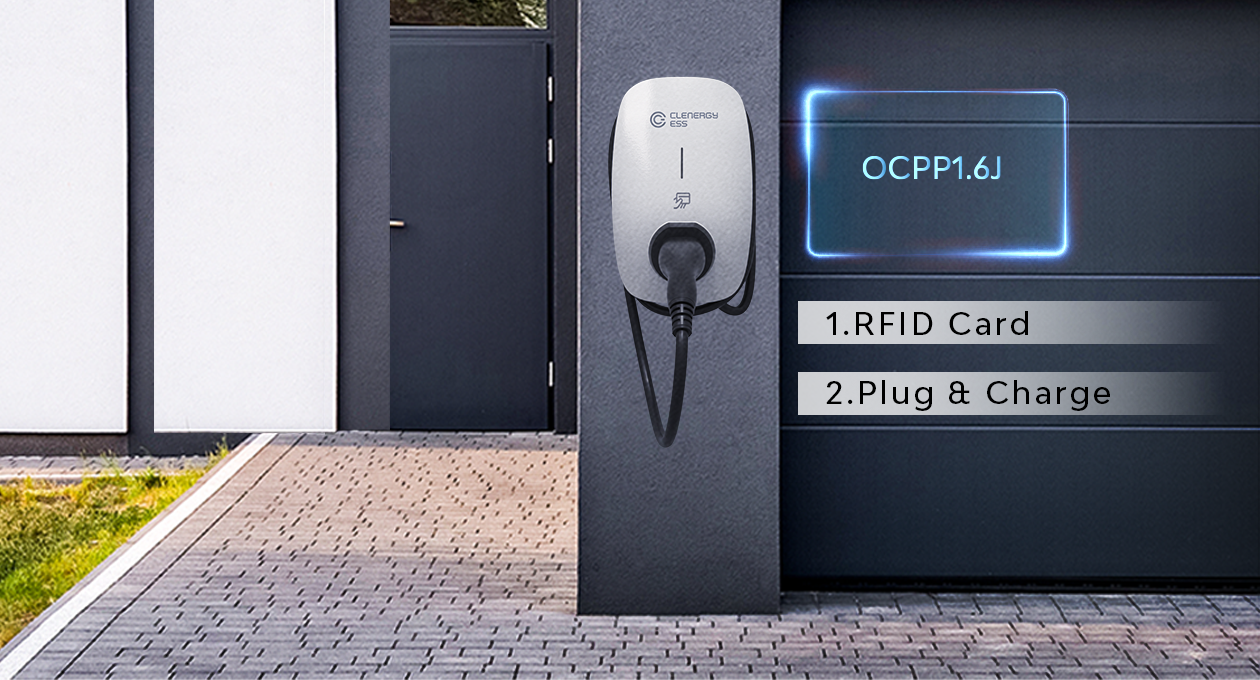

    Superior Adaptability
    Supports the OCPP 1.6 J communication protocol and offers two convenient start modes — Plug to Charge and RFID Card — to suit different user preferences.

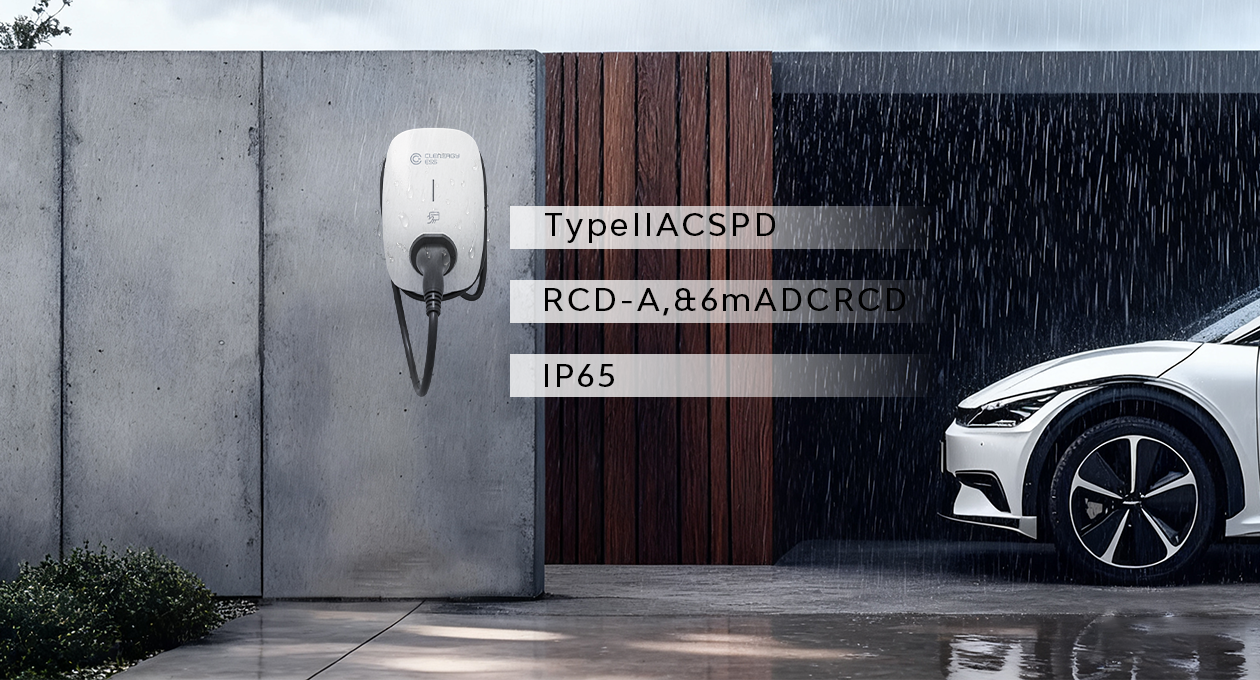

    Safe and Reliable
    • IP65
    Equipped with Type III AC SPD, RCD-A, and 6 mA DC RCD protection, offering IP65-rated durability for indoor and outdoor applications.
    Parameter
    Model - CGE AS7.0S
    AC Input

    • Rated voltage (V AC)

      220/230/240

    • Power Supply

      1P+N+PE

    • Rated current (A)

      32
    AC Output

    • Rated Power(kW)

      7

    • Rated voltage (V AC)

      220/230/240

    • Rated current (A)

      32
    Protection

    • RCD

      30mA TYPE A+6mA DC

    • Electrical Protection

      Over current protection, Residual current protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection, Neutral-grounding resistor monitoring
    User interface & Communication

    • Charging socket

      Type 2 Socket
    General info

    • Ambient temperature (˚C)

      -30 ~ +50

    • Ingress Protection Rating

      IP54

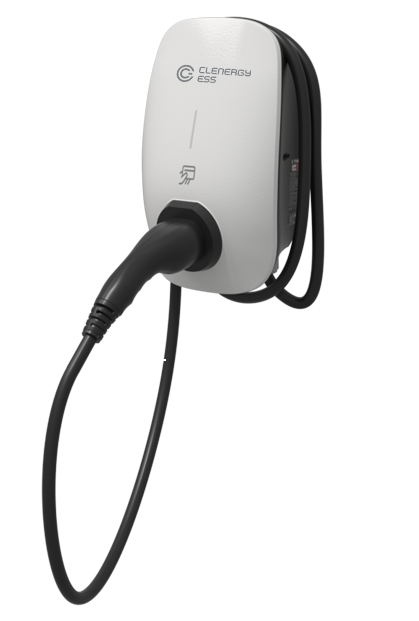

    • Dimensions (H×W×D) (mm)

      365*225*156

    • Certification Standards

      IEC 61851-1, EN IEC 61851-1, IEC 61000-6-1/2/3/4, EN IEC 61000-6-1/2/3/4, IEC 61851-21-2, EN IEC 61851-21-2, EN 301 489-1/3/17/52, EN 300 328, EN 300 330
    Model - CGE AC7.0S
    AC Input

    • Rated voltage (V AC)

      220/230/240

    • Power Supply

      1P+N+PE

    • Rated current (A)

      32
    AC Output

    • Rated Power(kW)

      7

    • Rated voltage (V AC)

      220/230/240

    • Rated current (A)

      32
    Protection

    • RCD

      30mA TYPE A+6mA DC

    • Electrical Protection

      Over current protection, Residual current protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection, Neutral-grounding resistor monitoring
    User interface & Communication

    • Charging socket

      6m Type 2 Cable
    General info

    • Ambient temperature (˚C)

      -30 ~ +50

    • Ingress Protection Rating

      IP65

    • Dimensions (H×W×D) (mm)

      365*225*156

    • Certification Standards

      IEC 61851-1, EN IEC 61851-1, IEC 61000-6-1/2/3/4, EN IEC 61000-6-1/2/3/4, IEC 61851-21-2, EN IEC 61851-21-2, EN 301 489-1/3/17/52, EN 300 328, EN 300 330
    Model - CGE AS11.0S
    AC Input

    • Rated voltage (V AC)

      380/400/415

    • Power Supply

      3P+N+PE

    • Rated current (A)

      16
    AC Output

    • Rated Power(kW)

      11

    • Rated voltage (V AC)

      380/400/415

    • Rated current (A)

      16
    Protection

    • RCD

      30mA TYPE A+6mA DC

    • Electrical Protection

      Over current protection, Residual current protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection, Neutral-grounding resistor monitoring
    User interface & Communication

    • Charging socket

      Type 2 Socket
    General info

    • Ambient temperature (˚C)

      -30 ~ +50

    • Ingress Protection Rating

      IP54

    • Dimensions (H×W×D) (mm)

      365*225*156

    • Certification Standards

      IEC 61851-1, EN IEC 61851-1, IEC 61000-6-1/2/3/4, EN IEC 61000-6-1/2/3/4, IEC 61851-21-2, EN IEC 61851-21-2, EN 301 489-1/3/17/52, EN 300 328, EN 300 330
    Model - CGE AC11.0S
    AC Input

    • Rated voltage (V AC)

      380/400/415

    • Power Supply

      3P+N+PE

    • Rated current (A)

      16
    AC Output

    • Rated Power(kW)

      11

    • Rated voltage (V AC)

      380/400/415

    • Rated current (A)

      16
    Protection

    • RCD

      30mA TYPE A+6mA DC

    • Electrical Protection

      Over current protection, Residual current protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection, Neutral-grounding resistor monitoring
    User interface & Communication

    • Charging socket

      6m Type 2 Cable
    General info

    • Ambient temperature (˚C)

      -30 ~ +50

    • Ingress Protection Rating

      IP65

    • Dimensions (H×W×D) (mm)

      365*225*156

    • Certification Standards

      IEC 61851-1, EN IEC 61851-1, IEC 61000-6-1/2/3/4, EN IEC 61000-6-1/2/3/4, IEC 61851-21-2, EN IEC 61851-21-2, EN 301 489-1/3/17/52, EN 300 328, EN 300 330
    Model - CGE AS22.0S
    AC Input

    • Rated voltage (V AC)

      380/400/415

    • Power Supply

      3P+N+PE

    • Rated current (A)

      32
    AC Output

    • Rated Power(kW)

      22

    • Rated voltage (V AC)

      380/400/415

    • Rated current (A)

      32
    Protection

    • RCD

      30mA TYPE A+6mA DC

    • Electrical Protection

      Over current protection, Residual current protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection, Neutral-grounding resistor monitoring
    User interface & Communication

    • Charging socket

      Type 2 Socket
    General info

    • Ambient temperature (˚C)

      -30 ~ +50

    • Ingress Protection Rating

      IP54

    • Dimensions (H×W×D) (mm)

      365*225*156

    • Certification Standards

      IEC 61851-1, EN IEC 61851-1, IEC 61000-6-1/2/3/4, EN IEC 61000-6-1/2/3/4, IEC 61851-21-2, EN IEC 61851-21-2, EN 301 489-1/3/17/52, EN 300 328, EN 300 330
    Model - CGE AC22.0S
    AC Input

    • Rated voltage (V AC)

      380/400/415

    • Power Supply

      3P+N+PE

    • Rated current (A)

      32
    AC Output

    • Rated Power(kW)

      22

    • Rated voltage (V AC)

      380/400/415

    • Rated current (A)

      32
    Protection

    • RCD

      30mA TYPE A+6mA DC

    • Electrical Protection

      Over current protection, Residual current protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection, Neutral-grounding resistor monitoring
    User interface & Communication

    • Charging socket

      6m Type 2 Cable
    General info

    • Ambient temperature (˚C)

      -30 ~ +50

    • Ingress Protection Rating

      IP65

    • Dimensions (H×W×D) (mm)

      365*225*156

    • Certification Standards

      IEC 61851-1, EN IEC 61851-1, IEC 61000-6-1/2/3/4, EN IEC 61000-6-1/2/3/4, IEC 61851-21-2, EN IEC 61851-21-2, EN 301 489-1/3/17/52, EN 300 328, EN 300 330
    ClenergyESS CGE EV Charger Installation Quick Guide Australia ClenergyESS CGE EV Charger Datasheet Australia ClenergyESS CGE EV Charger User Manual Australia ClenergyESS CGE EV Charger User Manual China ClenergyESS CGE EV Charger Installation Quick Guide China
